My Equipment
My Equipment
This is my current station setup (not necessarily at the same time!

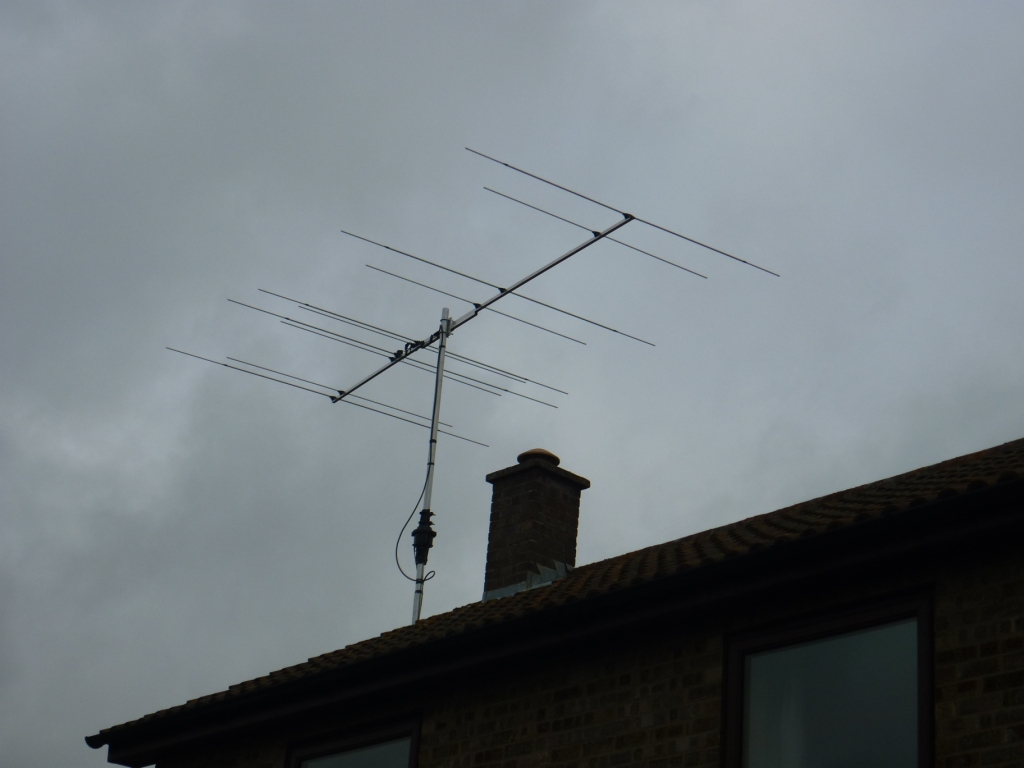

50MHz Icom IC7610 100 Watts to a 5+5 element YU7EF dualband Yagi. 10m agl.
70 MHz Elecraft K3 to a G4DDK Anglian transverter and a homebrew 100 Watt LDMOS PA. 5+5 element YU7EF dualband Yagi.
144MHz Anglian transverter plus 400 Watts LDMOS PA to a Inovantennas 9 el OWL Yagi at 10m agl
433MHz TS200X 50 Watts to a Triband vertical colinear at 8m agl
1296MHz G4DDK transverter plus 500 Watt LabTech AB LDMOS Amplifier G4DDK VLNA2+ preamp 0.29dB Noise figure 44element Wimo Yagi.
3400MHz Elecraft K3 G4DDK Anglian 144 transverter, hombrew Transverter and 80Watt 2 x Toshiba PA with G4DDK VLNA2+ 0.3dB NF Masthead preamp

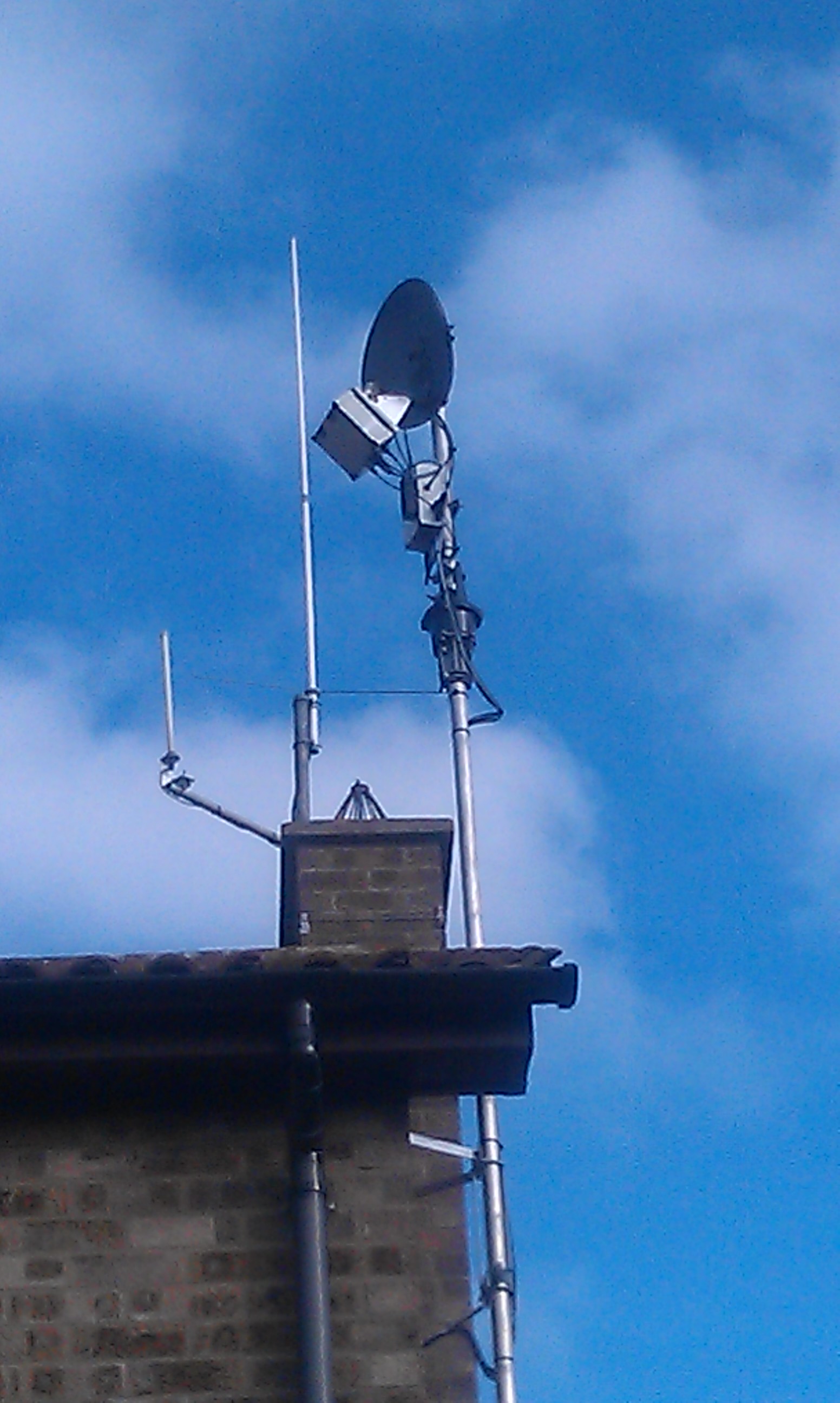

60cm offset dish with twin dipole feed
10368MHz Elecraft K3, Anglian 144 transverter, GW4DGU 10GHz transverter. 0.7 dB NF preamp. Marconi-Matra 14 Watt GaAsFET Power Amplifier. (7 Watts at feed)
60cm Offset dish with 10G/24G W1GHZ feed.
24048MHz Elecraft K3, Anglian 144 transverter, Masthead Kuhne electronics 24G2 transverter. 2.2 dB NF preamp. 2W GaAsFET Power Amplifier.
60cm Offset dish with 10G/24G W1GHZ feed
Frequency References
G3RUH GPSDO 10MHz reference.
127.5MHz G8ACE oscillator reflocked to G3RUH GPSDO
