A 9cm transverter using an Ionica receive converter and the "big board"

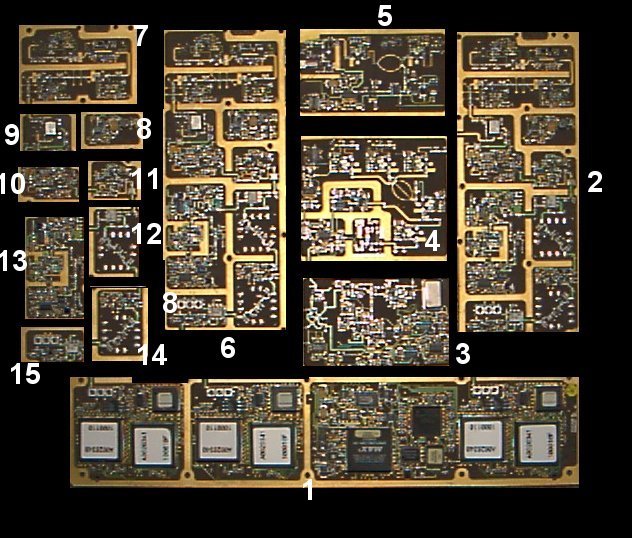

Take a quick look at the layout and you can see what all the bits do.
1. Clever digital bits
2. Transmit converter # 1
3. 55.296MHz reference oscillator and part of synthesiser
4. Part of Synthesiser
5. Part of Synthesiser and 2.5GHz power splitter
6. Transmit converter # 2
7-14 Transmit converter # 3 consisting of:
-
7. 3.5GHz driver amplifier
-
8. Switch mode power supply
-
9. 3.4GHz upconverter
-
10. 960MHz buffer amplifier
-
11. 960MHz buffer amplifier
-
12. 960 MHz upconverter
-
13. 5V psu and IF amplifier
-
14. IF filter
-
15. IF filter and mixer
